Print your Petrel* Models in 3D!
Overview:
PrinTerra is an easy and innovative tool to print in 3D your geological and reservoir
models. With the ability to print in full colours, geological and reservoir data
can be “touched” to better understand a complex field area. 3D printing
makes data touchable and greatly improves the ability to demonstrate complex geological
and reservoir models.
Useful links:
Features:
PrinTerra is a driver interface within Petrel to export your geological and reservoir
models to file formats recognized by 3D printers. The PrinTerra interface allows
exporting of 3D grid properties of Petrel models: facies, porosity, permeability,
pressure, saturations, impedances, etc.
|

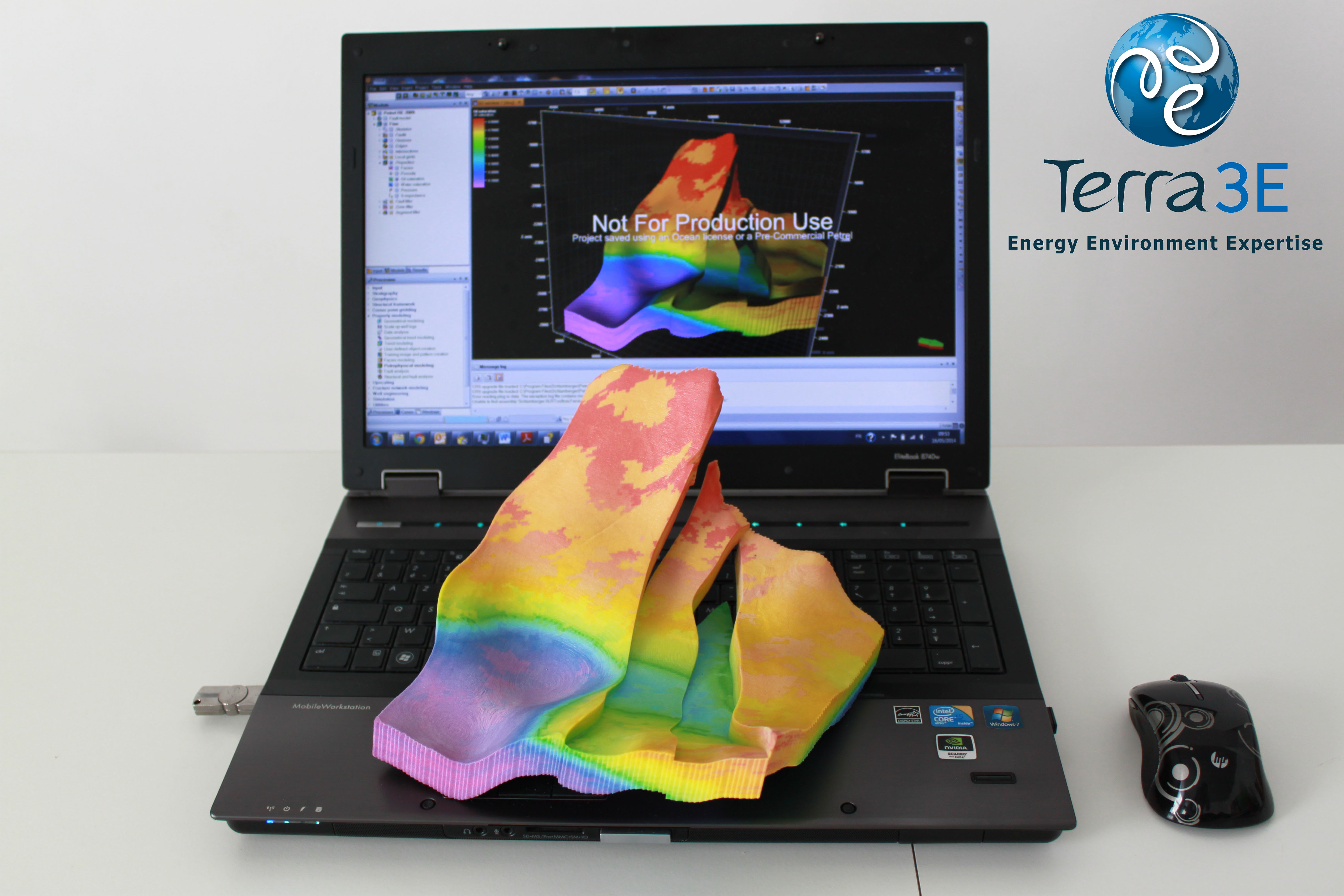

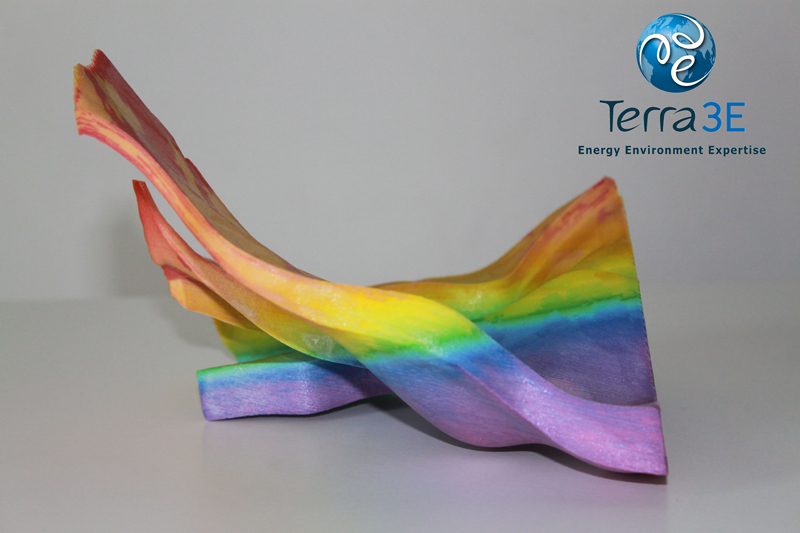

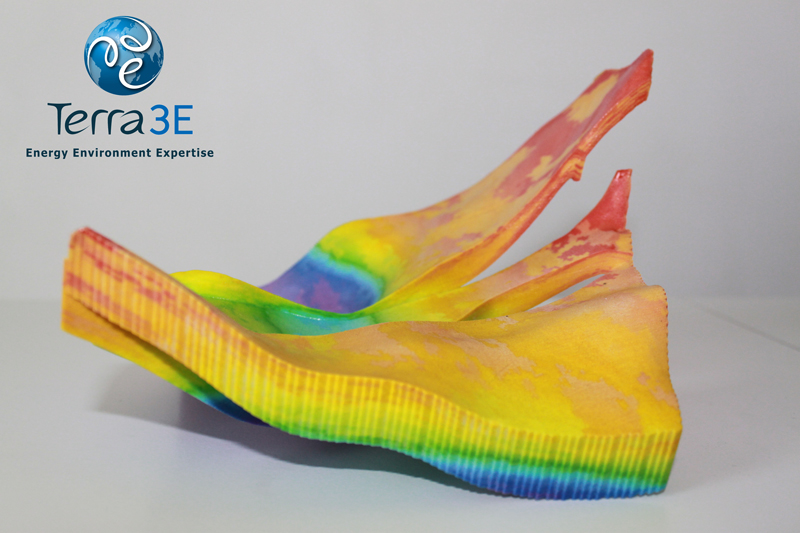

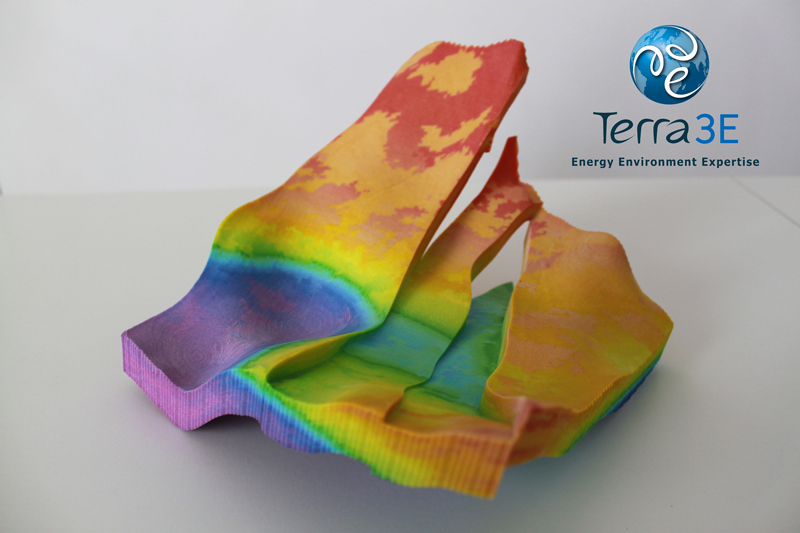

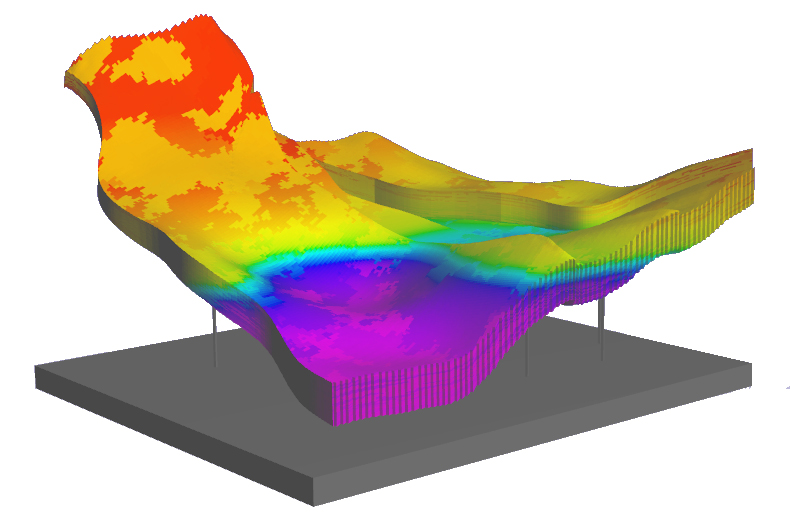

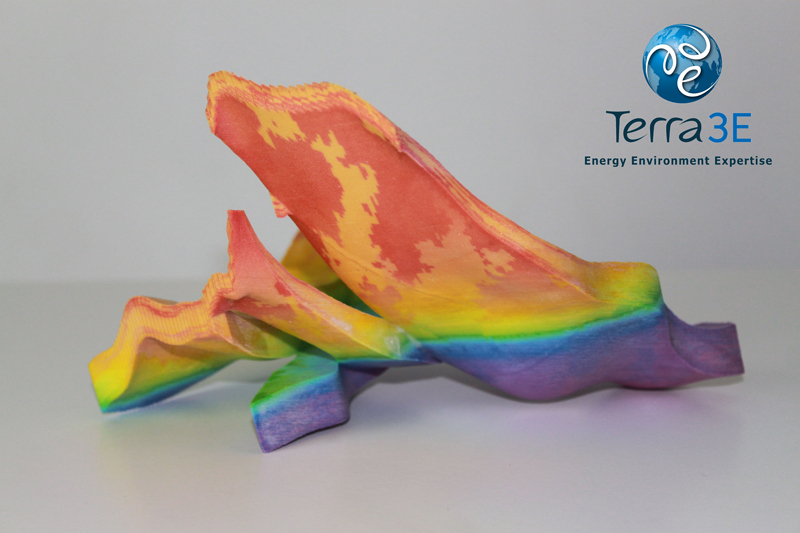

An example of printable Petrel Model.
|
|
|
|

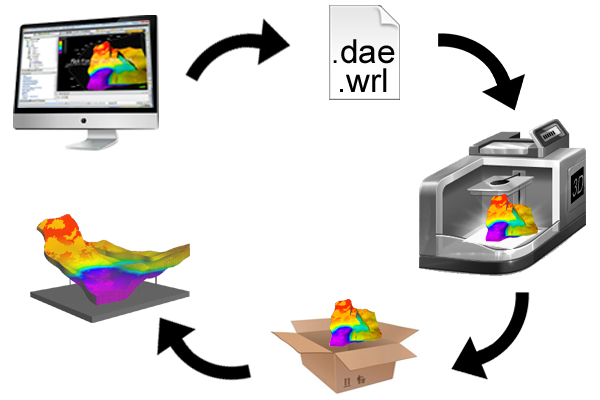

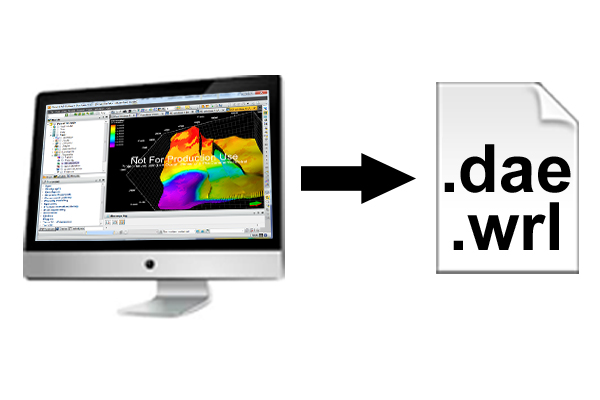

Export your 3D Petrel geological or reservoir model to a COLLADA (.dae) or VRML (.wrl) file format
that is read by most 3D modelling software. The PrinTerra interface allows defining
the size of the printable models; using different aspect ratio; exporting the textures
of your Petrel models and generating automatically the pedestal.
|
|
|
|
|
The Collada file can be sent to any 3D printer companies and can be easily modified
if necessary. Online 3D printing platforms allow uploading in a confidential maner
your files and receive the corresponding 3D object.
|
|
|
|
|
